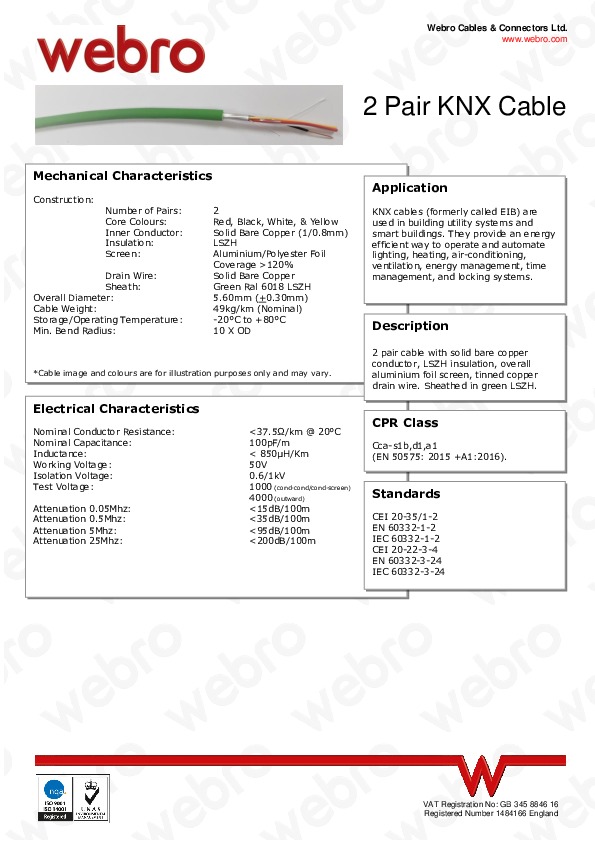

2 pair cable with solid bare copper conductor, LSZH insulation, over all aluminium foil screen, tinned copper drain wire. Sheathed in green LSZH.
KNX cables (formerly called EIB) are used in building utility systems and smart buildings. They provide an energy efficient way to operate and automate lighting, heating, air-conditioning,ventilation, energy management, time management, and locking systems.
Number of Pairs: 2
Core Colours: Red,Black, White, & Yellow
Inner Conductor: Solid Bare Copper (1/0.8mm)
Insulation: LSZH
Screen: Aluminium/Polyester Foil Coverage>120%
Drain Wire: Solid Bare Copper
Sheath: Green Ral 6018 LSZH
Overall Diameter: 5.60mm(+0.30mm)
Cable Weight: 49kg/km (Nominal)
Storage/Operating Temperature: -20°C to +80°C
Min. Bend Radius: 10X OD
Nominal Conductor Resistance: <37.5Ω/km@ 20°C
Nominal Capacitance: 100pF/m
Inductance: < 850µH/Km
Working Voltage: 50V
Isolation Voltage: 0.6/1kV
Test Voltage: 1000 (cond-cond/cond-screen) 4000(outward)
Attenuation 0.05Mhz: <15dB/100m
Attenuation 0.5Mhz: <35dB/100m
Attenuation 5Mhz: <95dB/100m
Attenuation 25Mhz: <200dB/100m
