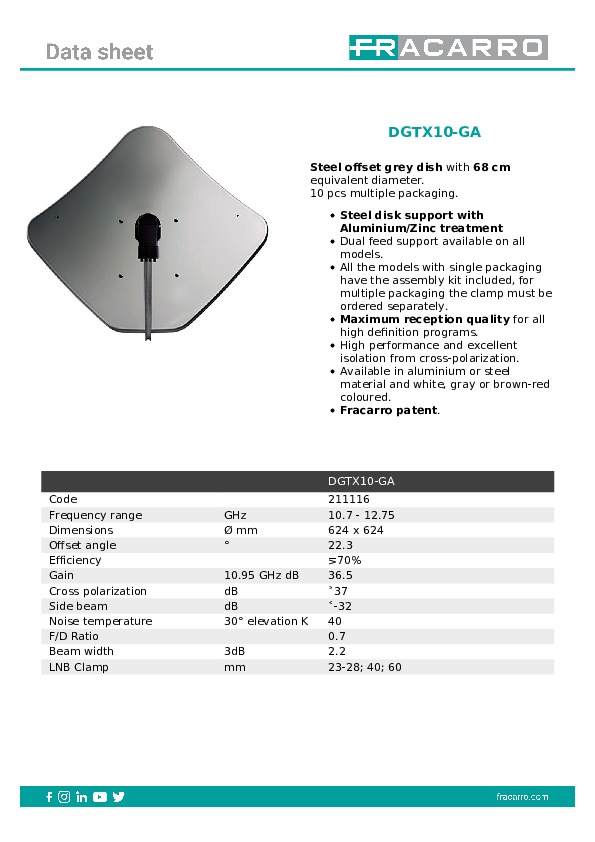

Steel offset grey dish with 68 cm equivalent diameter.
Main features:
- Steel disk support with Aluminium/Zinc treatment
- Dual feed support available on all models.
- All the models with single packaging have the assembly kit included, for multiple packaging the clamp must be ordered separately.
- Maximum reception quality for all high definition programs.
- High performance and excellent isolation from cross-polarization.
- Available in aluminium or steel material and white, grey or brown-red coloured.
Frequency range GHz: 10.7-12.75
Dimensions Ø mm: 624x624
Offset angle °: 22.3
Efficiency: ≥70%
Gain at 10.95GHz dB: 36.5
Cross polarisation on axis dB: >37
First side lobe dB: <-32
Noise temperature: 40°K at 30° elevat.
F/D ratio: 0.7 0.7
Beamwidth :(-3dB) ° 3 2.2
LNB clamp mm: 23-28; 40; 60
Elevation angle Maximum tilt: 60°
Mast clamp mm: 35-80
Material :Alumium/steel
Bracket material :Steel - aluminium zinc treatment
Wind load at 150Km/h Kg: 53
